SecuriFire 3000

SCP 3000 Cabinet

B8-SCP3010 – Basic version

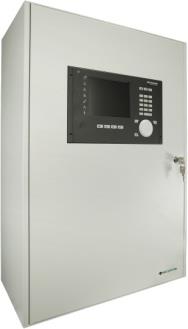

B8-SCP3020 – with built-in operating panel
B8-SCP3030 – with built-in operating panel and printer
B8-SCP3040 – with built in panel, printer and cut out for EPI-device
B8-SCP3050 – with built in panel, printer and cut out for MMI-device

SecuriFire 3010 basic version including:
– Sheet steel cabinet (grey)
– DOM-cylinder lock
– B8-MCB15 Central Processor Unit
– B8-PSU power supply unit (110/230 VAC)
– Module rack with B8-BUS backplane
– Battery compartment

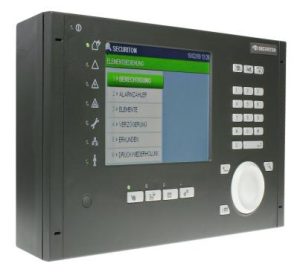

B8-MIC711

External main indication and control panel for SecuriFire 3000. User-friendly full operation with “SecuriWheel” and system symbols.

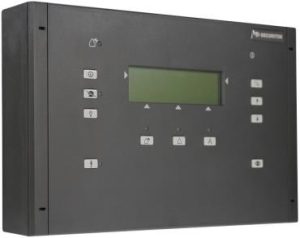

B5-MMI-FIP

The SecuriFire floor indication panel provide well organized and convenient announcement of the conditions of the SecuriFire – system.

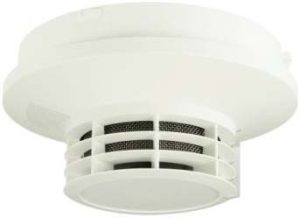

MCD 573X

Combined smoke and heat detector with programmable detection behaviour smoke / heat or combined.

CCD 573X

The temperature- and CO-supported smoke sensor provides early detection of smouldering, glowing and open fires with smoke development.

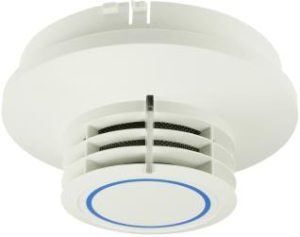

LKM 593X

For early detection of smouldering and open fires with smoke development. For mounting in the LKM-Set, for ventilation ducts.

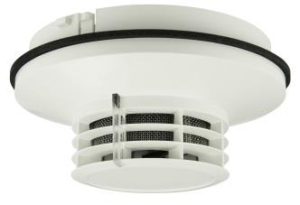

MMD 130 Ex-i

An intrinsically safe multi-criteria detector for use in hazar-dous areas of zones 1, 2 (gas) and 22 (non-conductive dust).

USB 502-X

Base for addressable and conventional SecuriStar detectors with integrated 6 wire terminal and detector fixing by means of bayonet coupling.

RAL 730

Alarm indication of fire detectors which are not directly visible e.g. behind doors or which are mounted in a hidden place e.g. false ceiling.

MCP 545X

The manual call point MCP 545X N is a non-automatic detector for fire alarm systems for direct connection to the SecuriLine eXtended.

MCP 535X

Double action break glass, according to VdS and EN54-11. Delivered without inscription label and key, to be ordered separately.

BX-IOM

For controlling monitored devices, which are supplied with power by an external power supply (e.g. sirens, etc.).

BX-IM4

For indication and monitoring of various types of acknowledgements, e.g. door contacts, fire zones, extinguishing systems, sprinkler messages, etc.

BX-OI3

Contains a relay output with a programmable fail-safe position, two inputs for monitored querying of potential-free contacts and an optocoupler input for monitoring external voltages.

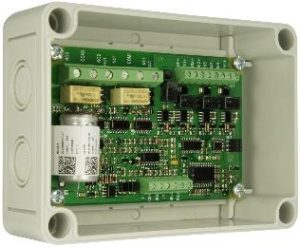

BX-O2I4

The BX-O2I4 has two relay outputs and four monitored inputs for polling potential-free contacts.

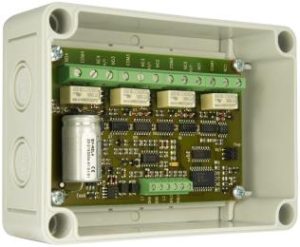

BX-REL4

Provides for four potential free relay outputs with a contact rating of 2A@230V. Each relay allows for Common, Normally open and Normally closed contacts.

BX-I2

For indication and monitoring of various types of acknowledgements, e.g. door contacts, fire zones, extinguishing systems, sprinkler messages, etc.

BX-O1

Provides one potential free relay outputs with a contact rating of 2A@230V. Each input is freely programmable using SecuriFire Studio.

BX-AIM

Can be configured as a monitored input for querying potential-free contacts or as a collectively addressable detector zone (DC technology).

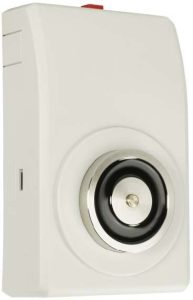

BX-MDH

The BX-MDH is an electronically triggered magnetic door holder for connection to the SecuriLine eXtended.

BX-SOL

Loop powered and controlled sounder for SecuriLine eXtended.

BX-FOL
